Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer

Name: Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer
Brand: GEZHI or OEM
Price: 1 USD

Brand Name : GEZHI or OEM

Model Number : 1x16CH-CWDM-D-2ULGX

Certification : CE RoHS FCC,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Product Name : 1x16CH CWDM LGX

Wavelength : 1310 to 1610nm

Line Type : Dual fiber

Connector : LC/UPC

Package : 2U LGX cassette

Apllication : WDM network

Contact Now

1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module

GEZHI 1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module based on dielectric thin-film filter technology which designed for integration in low cost Metro and Access networks.

The 1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.

Features	Applications
Alleviate fiber exhaustion Utilize Optical Line Converter as transponder Increase bandwidth on existing fiber infrastructure Scalable bandwidth of up to 10 Gbps per channel	Access Network Telecommunication Cellular Application Fiber optical amplifier Line monitoring

Specification

Parameter		Unit	1x16CH Optical CWDM Modules
			Mux	Demux
Channel Wavelength		nm	1310~1610nm
Center wavelength Accuracy		nm	±0.5
Channel Spacing		nm	20
Channel Passband (@-0.5dB bandwidth		nm	>15
Max Insertion Loss		dB	<4.5 or <3.2 with Skip	<4.5 or <3.2 with Skip
Channel Ripple		dB	0.3
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.1
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-5~+75
Storage Temperature		℃	-40~85
Package dimension		mm	2U LGX Cassette

Note: 1. Customization is available.

2. Specified with connector

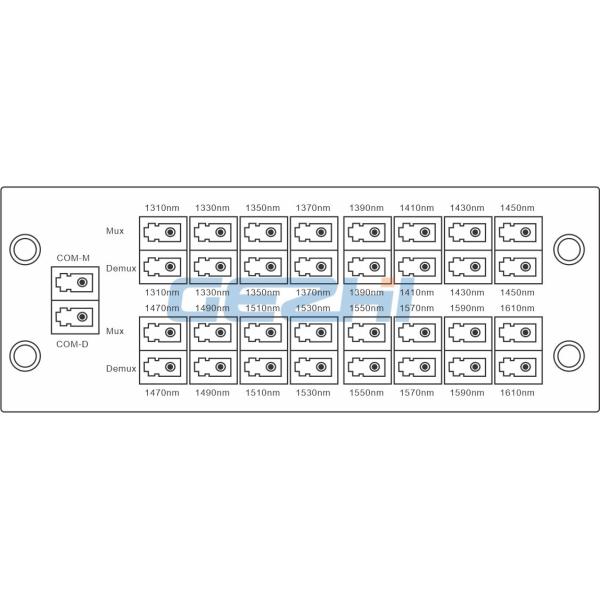

16 Channels Optical Passive CWDM De-multiplexer Modules Bi-directional Filter Cascading

Packaging

Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer

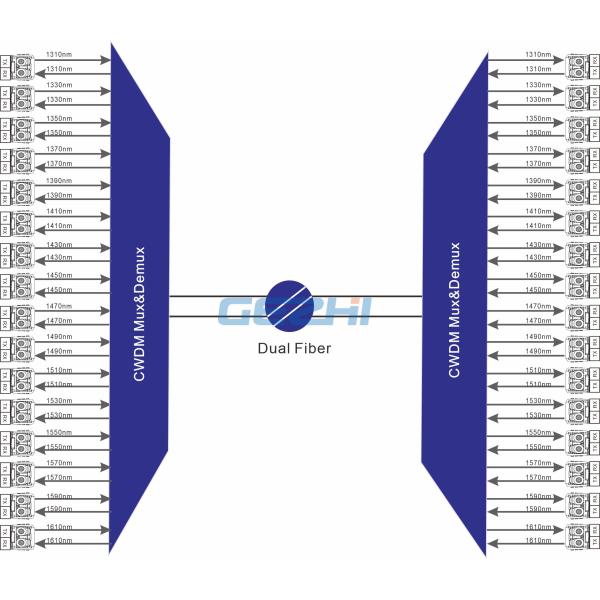

1x16 CH CWDM Mux / Demux Fiber Optical Multiplexer Dual Fiber LGX plug-in Module Solution

Dual Fiber 1x16 CH CWDM Mux Demux Fiber Optical Multiplexer
